POWERFLOW N2- 隧道式全程充氮的波峰焊接系统

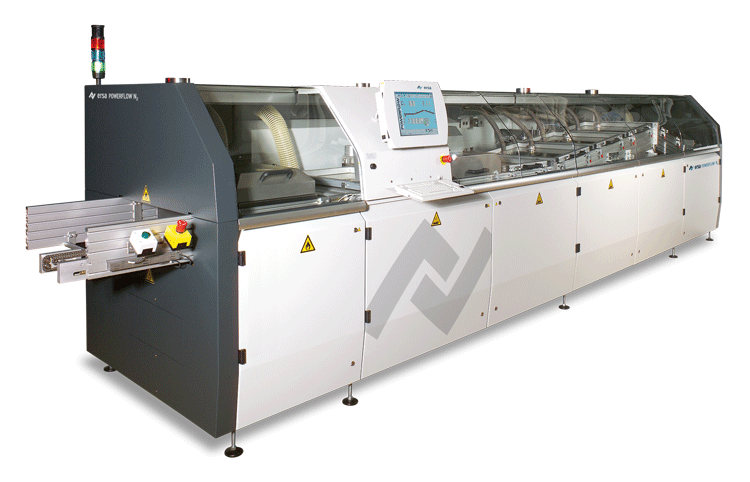

Ersa‘s new full nitrogen tunnel wave solder machine, the POWERFLOW N2 was specifically designed to meet the challenges of lead free! As Ersa's flagship machine, the POWERFLOW N2 can reduce lead free wave solder running costs by as much as 90%! The machine highlights a 16" board width, plug and play pre-heat design (Medium IR, Convection, Short IR and now with new topside Convection) and 1.8 meters of preheat standard. Additional pre-heating of up to 2.4 meters can be added if needed. A new nozzle configuration brings the chip wave closer to the laminar wave for reduced solder defects. This machine has a pin & chain transport throughout the fluxer and pre-heater and feeds into a finger conveyor in the wave section of the machine. A bar code scanner on the new fluxer allows to selectively flux and program in "keep out areas" for board cut outs, where the fluxer will not spray a specific are of the board. The POWERFLOW N2 machine has a process gas cleaning system (similar to Reflow machines) which also regulates the Auto Tunnel Temperature Compensation. The machine has a low profile design of 1.57 m and is ideal for demanding customers who require a 400 mm or 16" tunnel wave.

Convince yourself of the significant advantages of the POWERFLOW N2 wave soldering machine!

请花几分钟看一下POWERFLOW全程充氮设备的演示录像（3分钟）
